Draper Micro Projector Lift:

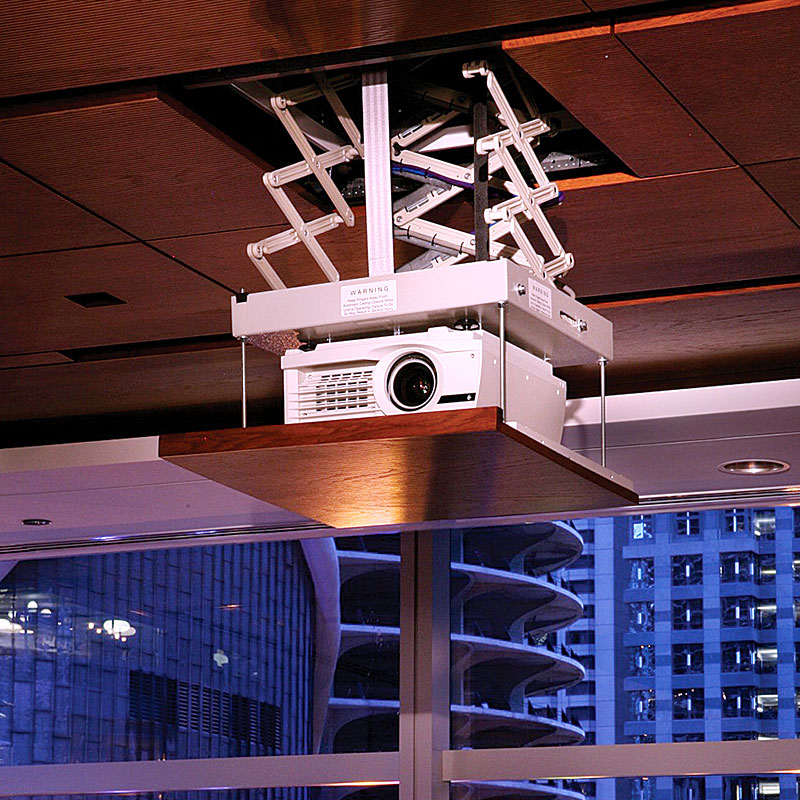

The Micro Projector Lift is small and convenient, just like the projectors it is designed to accommodate. It can be installed in an existing 2' x 2' ceiling opening without disturbing the ceiling framework. The projector’s “show” position can be set at any point with infinite adjustability, up to 48” extension. 35 pound lifting capacity. Maximum projector size is 18" x 18".

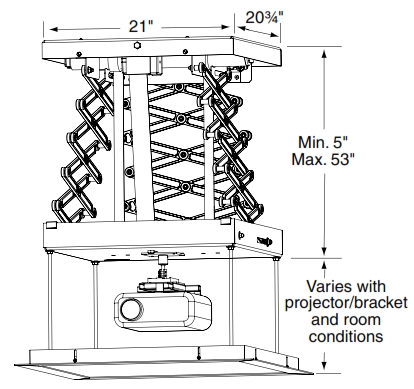

The Micro Projector Lift utilizes the same exclusive 3-scissor design as Draper’s popular Scissor Lift but features a compact side-folding scissor. The load is lifted by two 1” wide Kevlar straps. Safety belt provides extra protection. Closed height of lifting unit is only 5” tall (not including projector, mounting mechanism or closure), so a minimal amount of overhead ceiling space is required.

Specifications & Features:

Factory Installed Cables:

Draper will factory install cables for RGBHV with BNC or 15pin HD connectors, S-Video, Composite and Component Video with BNC or RCA connectors, Serial Communication for projector control with DB9 connectors, CAT 5e, CAT 6, and HDMI. This option is available on the LCD lift, Micro Projector Lift, and Scissor Lifts. This option save installation time in the field since installer does not have to attach cables to the lift.

• Maximum lifting capacity up to 35 lb (16 kg).
• Maximum extension up to 48” (122 cm).
• Can be installed in existing 2’ x 2’ (61 cm x 61 cm) ceiling grid.
• Optional Environmental Airspace Housing to isolate projector from environmental airspace above ceiling.

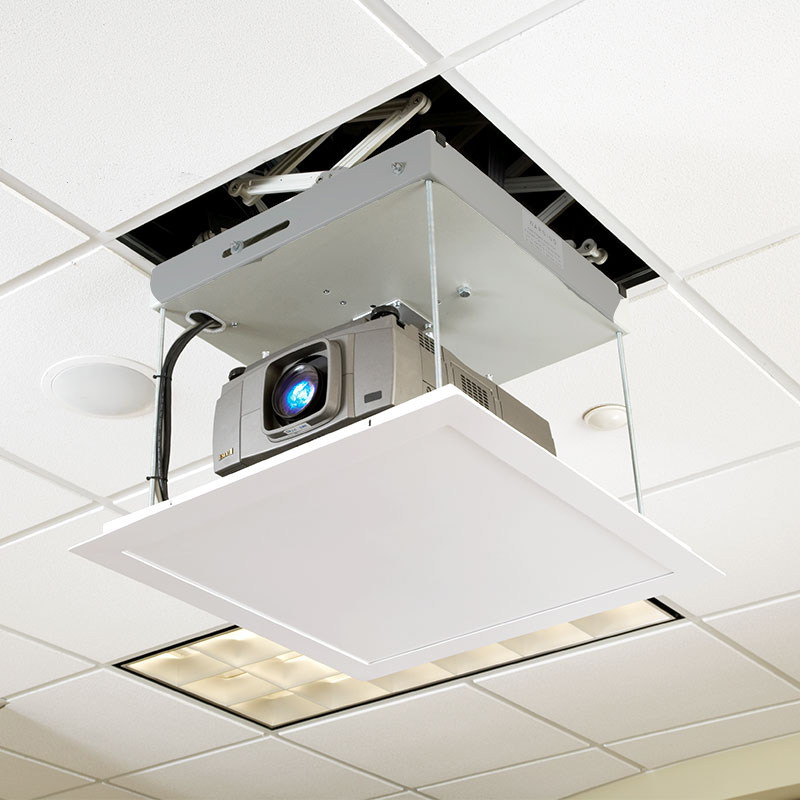

• Optional ceiling closure panel available in white (standard) or black.
• Ceiling finish kit optional. Kit includes ceiling trim ring and closure panel.
• Optional universal-style bracket for easy attachment of a variety of projector models.
• Installation of factory installed cables for video and projector control available.
• Wall switch standard, optional IR or RF remote control, or integrate into your control system.
• Lift finish is grey.
