PRODUCT OVERVIEW

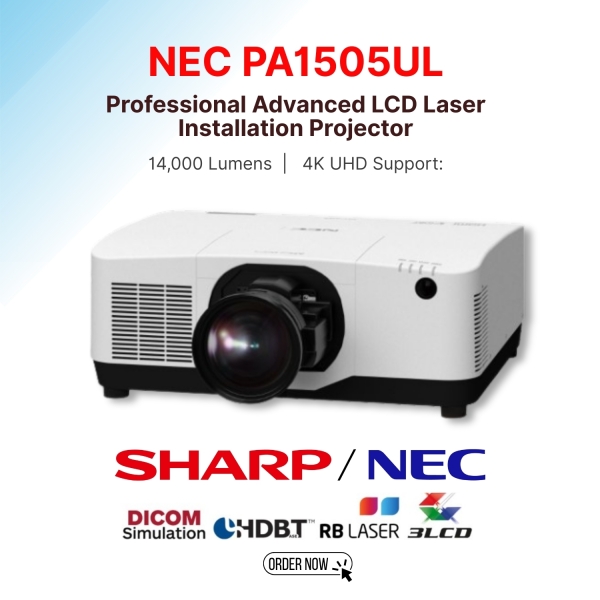

The white NEC NP-PA1505UL 14,000-Lumen WUXGA Laser 3LCD Projector is a high-brightness, professional installation projector designed for medium to large corporate and higher education spaces. Featuring a laser light source in an IP5X certified filter-free case, the NP-PA1505UL is built for long life with minimal maintenance. Enjoy installation flexibility with a full line of optional lenses, 360° orientation support, and full geometric correction. Connect a variety of devices via 3G-SDI, HDBaseT, and HDMI 2.0 inputs with support for up to 4K60 video signals. Additionally, an HDBaseT output is available for daisy-chaining in multi-projector setups with stacking and edge blending capability built in.

4K Ready

The NEC PA1505UL supports stunning 4K60 content, offering superior image clarity and detail with NEC's proprietary high-performance video processing/scaling chip. This advanced technology ensures that even at higher resolutions, no critical details are lost, allowing for lifelike visuals with exceptional sharpness and color accuracy. Whether you're displaying 4K media, digital signage, or high-definition presentations, this projector ensures that your content looks its best on any large screen.

HDBaseT Connectivity

Simplify your projector installations with the HDBaseT technology integrated into the NEC PA1505UL. HDBaseT supports uncompressed full HD digital video, audio, Ethernet, power, and various control signals all through a single cable. This not only reduces the number of cables required for installation but also minimizes clutter, cutting down on both infrastructure and labor costs. With support for up to 327 feet of cable length, this advanced connectivity option allows for long-distance video transmission without sacrificing image quality, ensuring that the installation is clean, efficient, and cost-effective.

Built-In Stacking and Edge Blending

The NEC PA1505UL features built-in stacking and edge blending capabilities that significantly enhance image brightness and quality for large venue applications. When multiple projectors are stacked, the combined brightness can reach up to 68,000 lumens, making it ideal for large screens and environments with strong ambient light. This feature ensures a brighter and more consistent image, even in challenging lighting conditions. Additionally, edge blending allows multiple projected images to seamlessly combine into one high-resolution display, making it perfect for immersive experiences or wide-format presentations.

Geometric Correction

With geometric correction, the NEC PA1505UL offers unparalleled flexibility in terms of projection surface and shape. It allows you to project images onto non-standard surfaces such as spheres, cylinders, and corner angles, which are often required for creative installations or artistic projections. Whether you're projecting on irregular-shaped screens or unique architectural surfaces, this feature ensures that your visuals remain distorted-free and perfectly aligned, creating the ideal presentation regardless of the surface's geometry.

Control System Support

The NEC PA1505UL is designed for seamless integration with advanced control systems. With built-in support for AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link, you can achieve full interactivity and centralized control for managing multiple projectors and ensuring optimal performance across all units. These systems enable easy monitoring and remote control, offering real-time diagnostics, status updates, and the ability to manage settings remotely, saving both time and resources in managing large-scale installations.

NEC ProAssist Software

For installation professionals, NEC ProAssist provides comprehensive projector management software that enhances the setup and fine-tuning of the NEC PA1505UL. This intuitive software allows full control over multiple projectors, enabling adjustments for input switching, picture settings, lens adjustments, edge blending, and uniformity. With a user-friendly Graphical User Interface (GUI), you can fine-tune settings like gamma control to optimize image quality, ensuring your projection displays are consistent, vibrant, and tailored to your specific needs.

Optional Lenses

Enjoy increased flexibility during installation with the optional motorized lenses available for the NEC PA1505UL. These bayonet-style lenses are designed for quick and easy swapping, making adjustments between different projection setups simple and efficient. With throw distances ranging from 4.25 to 141 feet, you can tailor your projector to various installation environments, whether you're projecting on small screens or massive walls. These lenses ensure the best fit for your space, providing the optimal zoom and focus for stunning image clarity.

Additional Features

• WUXGA native resolution

• Motorized lens shift

• Motorized zoom and focus

• 3.5mm variable audio output

• Instant on/off

• Auto power off

• 360° roll-free installation

• Portrait mode

• Picture-in-picture

• Picture-by-picture

• Multi-display and tile matrix via HDBaseT daisy chain

• Control over LAN or RS-232

• Built-in wall color correction
